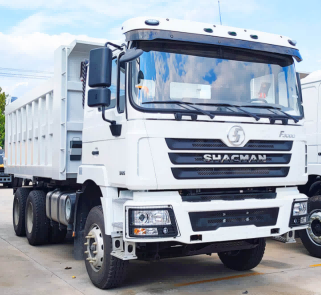

Shacman F3000 Dump Truck: Revolutionizing Heavy – Duty Hauling

In the world of heavy – duty transportation, Shacman has long been a name synonymous with reliability, power, and innovation. The Shacman F3000 Dump Truck, a flagship model in their lineup, continues to set new benchmarks in the industry, offering an unrivaled combination of performance, durability, and versatility.

Unmatched Powerhouse

The F3000 is equipped with a range of high – performance engines, with the Weichai series being a popular choice. Take, for example, the Weichai WP12.375E40 engine. With a displacement of 11.596L, it churns out an impressive 375 horsepower (276kW) and a whopping 1,800 N·m of torque at a low – speed range of 1,000 – 1,400 rpm. This low – speed high – torque characteristic is a game – changer, enabling the truck to effortlessly navigate steep slopes in mining areas or power through rough terrains at construction sites. The engine features advanced technologies such as the high – pressure common – rail fuel injection system by Bosch. This system, with its 1,600 – bar fuel injection pressure, ensures precise fuel delivery, leading to better atomization and more efficient combustion. Paired with multi – power fuel – saving switches, water – separating filters, and fuel – efficient thermostatic fans, the F3000 achieves up to 10% better fuel economy compared to its predecessors.

Robust Build for Maximum Load – Bearing

The chassis of the F3000 is a masterpiece of engineering. Constructed using high – strength steel, it has been optimized through CAE analysis and finite – element topology. The result is a double – layer, one – piece frame structure. The inner frame beam thickness has been intelligently reduced from 7mm to 5mm. This not only lowers the vehicle’s center of gravity but also enhances its load – bearing capacity. The front axle, a 9.5 – ton MAN – tech unit, offers reliable braking and excellent steering flexibility. It can handle large steering angles, making it easy to maneuver in tight spaces. The rear axle, Shacman’s Handee 16 – ton MAN – tech cast double – reduction axle, is renowned for its high load – bearing capacity, reliable braking, and low failure rate. Whether it’s hauling heavy loads in a busy port or enduring the harsh conditions of a long – distance mining operation, the F3000′s axles ensure smooth and trouble – free performance. The vehicle also features reinforced leaf springs, such as the 4×25 + 8×22mm four – main – leaf structure. Along with an 1,860mm wheelbase, widened spring span, and enclosed spring sliding seats, these components work together to improve lateral stability, minimizing the risk of rollovers during heavy – load driving or sharp turns.

Comfort and Safety Redefined

Inside the cab, the F3000 offers a driving experience like no other. It features VISTEON car – grade interiors, with natural negative – ion fiber fabrics that not only provide a comfortable seating surface but also contribute to a healthier cabin environment. The air – conditioning system, complete with timed external circulation and activated – carbon air filters, ensures that the air inside the cab remains fresh and clean, even during long – haul operations. The dashboard, with its new titanium – alloy texture, is equipped with German Continental VDO instruments. An imported CAN bus system provides real – time fault display, while the VOSS quick – connect systems make maintenance and repairs a breeze. The armrest – equipped air – suspension seat and the Φ450 small – diameter steering wheel system reduce driver fatigue significantly. Safety is a top priority in the F3000. The cab, crafted using MAN original molds and robot laser welding, has passed the stringent European “ECE – R29″ crash test. It has an energy – absorbing high – tensile steel body, special collapsible energy – absorbing zones, and high – strength anti – collision beams inside the doors. Standard safety features include a domestic four – channel ABS anti – lock braking system, which prevents wheel lock – up during braking, enhancing stability and safety. Optional active safety configurations like LDWS (Lane Departure Warning System) and FCW (Forward Collision Warning) are also available, further reducing the risk of accidents. The unique WEVB engine braking system increases braking efficiency by over 55%, providing an extra layer of safety, especially during long descents.

Versatile Configurations for Every Need

The F3000 comes in a variety of configurations to meet the diverse requirements of different industries. Drive types include 6×4 and 8×4, allowing users to choose the option that best suits their transportation needs, whether it’s for off – road mining operations or on – road construction material hauling. The cargo box options are equally flexible. With lengths ranging from 5.4m to 8.8m, widths of 2.3 – 2.35m, and heights of 1 – 1.5m, and options like rear – tipping and U – shaped buckets, the F3000 can handle various types of materials. For urban construction waste transportation, the U – shaped bucket design ensures clean unloading and minimizes residue. In contrast, large rear – tipping boxes are more suitable for heavy – duty mining haulage. Additionally, users can customize the thickness of the car body (such as bottom 16 side 12, bottom 14 side 10, bottom 12 side 8, etc.), the longitudinal beam structure (bottom four longitudinal beams, sleeve beams, grid patterns, etc.), and the rear door reinforcement methods (full channel steel for the rear door, triangular iron reinforcement for the frame, etc.) according to their specific working conditions. This level of customization ensures that the F3000 can perform optimally in any situation.

In conclusion, the Shacman F3000 Dump Truck is more than just a vehicle; it’s a comprehensive solution for heavy – duty hauling. With its powerful engine, robust build, comfortable and safe cab, and versatile configurations, it has firmly established itself as a leader in the market, catering to the needs of various industries worldwide.
